Beginning in 2000, all speakers used in ABM and MAG combos and cabinets are 'Ashdown (Jensen??) Blue Line custom bass loudspeakers.' Before that, Celestions were used. |
|
|
|
|
|
ABM Amp Features
|
|
|
Pre Amp: tube (one 12AX7A)/solid-state (called Klystron Bass Pre Magnifier)
Power Amp: solid-state Inputs: two, one (high) for passive, one (low, -6dB) for active basses; also stereo line input Controls: input gain, master volume, stereo line input level, output mute EQ: 7-band EQ with on/off switch; preset EQ with on/off switch; sub-octaver pot Effects: one mono in-series send/return Outputs: line out; tuner out; sub out; two speaker outs (heads) | two extension speaker outs (combos); symetrical XLR DI out, pre/post EQ switchable Miscellaneous: sub-octaver and mute output footswitch jacks; fan-cooled Source: Ashdown Product Catalog 1998; Gitarre&Bass 4/98, p. 168f; Gitarre&Bass 7/98, p. 134f; Musik Produktiv catalog 3/2001
|
|
|
|
|
|
MAG Amp Features
|
|
|
Pre Amp: solid-state
Power Amp: solid-state Inputs: two, one (high) for passive, one (low, -6dB) for active basses; Controls: input gain, master volume EQ: 5-band EQ with on/off switch; preset EQ with on/off switch; sub-octaver pot Effects: one mono in-series send/return Outputs: line/tuner out; two speaker outs (heads) | two extension speaker outs (combos); symetrical XLR DI out, post EQ Miscellaneous: sub-octaver and mute output footswitch jacks; fan-cooled? Source: Ashdown Product Catalog 1998; Gitarre&Bass 4/98, p. 168f; Gitarre&Bass 7/98, p. 134f; Ashdown Product Catalog undated (ca. 2000); Musik Produktiv catalog 3/2001
|
|
|
|
|
|
|
|
|
|||
|
|
|
|||
|
|

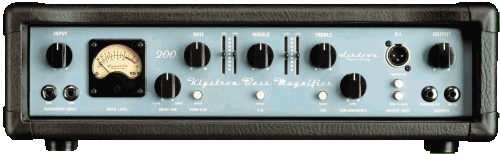

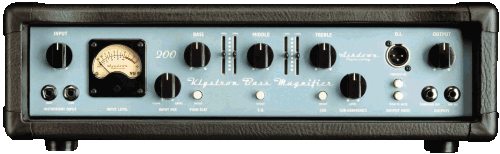

AKBM200, later called ABM200, 200 watts, head, 1998
|
|||
|
|
Wattage: 200 RMS/400 peak Impedance: 4 ohms
Dimensions: 137x477x320 mm/5.4x18.8x12.6 inches (HWD) Weight: 12 kg/26.4 lbs Source: Ashdown Product Catalog 1998; Gitarre&Bass 4/98, p. 168f; Gitarre&Bass 7/98, p. 134f
|
|||
|
|
Price: DM 1395 / EUR 713,25 (new)
Source: Musik Produktiv catalog 3/2001
|
|||
|
|
Opinion: ...
Source: ..
|
|||
|
|
Source: www.ashdownmusic.co.uk; July 1998
|
|||
|
|
|
|||
|
|
AKBM400, later called ABM400, 400 watts, head, 1998
|
|||
|
|
Wattage: 400 RMS/800 peak Impedance: 4 ohms
Dimensions: 137x477x320 mm/5.4x18.8x12.6 inches (HWD) Weight: 13 kg/28.8 lbs Source: Ashdown Product Catalog 1998; Gitarre&Bass 4/98, p. 168f; Gitarre&Bass 7/98, p. 134f
|
|||
|
|
Price: DM 1750 / EUR 894,76 (new)
Source: Musik Produktiv catalog 3/2001
|
|||
|
|
Opinion: A review, see Gitarre&Bass 4/98, p. 168f (in German); Gitarre&Bass on the net: http://www.gitarrebass.de
Source: Gitarre&Bass 4/98
|
|||
|
|
Source: Gitarre&Bass on the net, at www.gitarrebass.de/magazine; August 1998
|
|||
|
|
|
|||
|
|

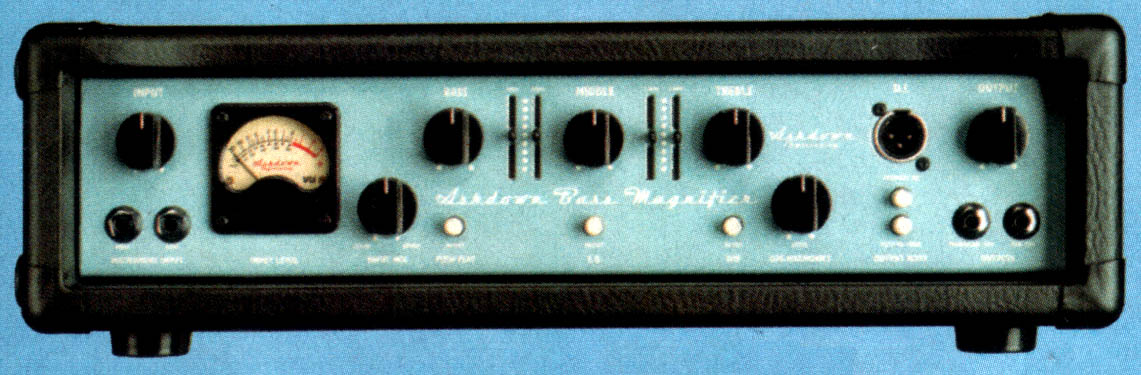

ABM500, 500 watts, head, 1998?
|
|||
|
|
Wattage: 500 RMS/1000 peak Impedance: 4 ohms
Dimensions: ? Weight: ca. 50 lbs Source: Ashdown Product Catalog 1998; Musik Produktiv catalog 3/2001; Jim Marsolino (jlino56@aol.com), www.bgra.net/reviews/ashdown-abm500-rvw.html, July 2002
|
|||
|
|
Price: DM 2275 / EUR 1163,19 (new)
Source: Musik Produktiv catalog 3/2001
|
|||
|
|
Price: US $1150 (new)
Source: Jim Marsolino (jlino56@aol.com), www.bgra.net/reviews/ashdown-abm500-rvw.html, July 2002
|
|||
|
|
Opinion: I bought this amp hoping to achieve a big low end without the mud [using this amp with an ABM 410H]. Boy did I get it! Construction is very solid. It has a very hip backlit VU meter to monitor input signal. Inputs are proveided for Active/Passive basses. The "Input Mix" feature goes from solid state clean to triode tube grind. The Sub-Harmoniser feature adds even more low end by adding a note one octave below the note played. It tracks very well. The power section really handles these low frequencies well. Where other amps would be struggling this amp shows no signs of clipping providing lots of headroom. The "Sub Output" provides a filtered low pass conection to powered cabs providing even more low end. I play my Warwick Fretless Thumb 5 through the system and it sounds incredible. The lower registers are fully defined without the slightest hint of mud. This thing is the "REAL DEAL"! Source: Jim Marsolino (jlino56@aol.com), www.bgra.net/reviews/ashdown-abm500-rvw.html, July 2002
|
|||
|
|
Source: Musik Produktiv catalog 3/2001
|
|||
|
|
|
|||
|
|

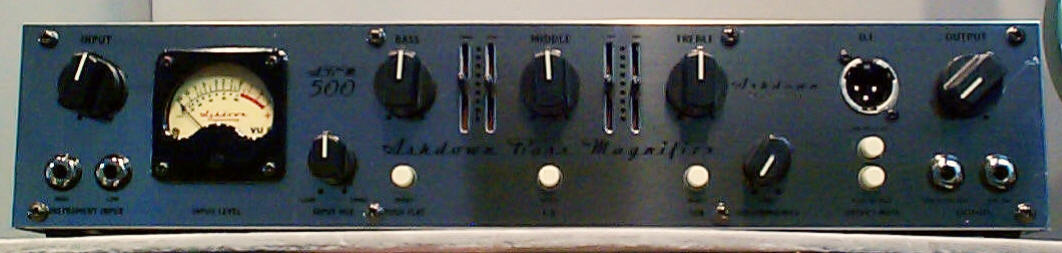

ABM500RC, 500 watts, rack mount, 2000
|
|||
|
|
Wattage: 500 RMS/1000 peak Impedance: 4 ohms
Dimensions: 19" rack mount, two spaces Weight: 30 lbs Source: Ashdown Product Catalog 1998; Musik Produktiv catalog 3/2001; Matt (matt@novia.net), www.bgra.net/reviews/ashdown-abm--1-rvw.html, June 2001
|
|||
|
|
Price: DM 2495 / EUR 1275,67 (new)
Source: Musik Produktiv catalog 3/2001
|
|||
|
|
Price: [US$?] 990 (new)
Source: Matt (matt@novia.net), www.bgra.net/reviews/ashdown-abm--1-rvw.html, June 2001
|
|||
|
|
Opinion: This is the 500 watt mono chrome-plated rackmount head and its secret weapon is the subharmonic feature that gives any bass unbelievable bottom end!
Source: www.basspalace.com, June 2000
|
|||
|
|
Opinion: Construction: solid, top notch. Two fans that blow air IN instead of out means that it stays cool. Aesthetics: powder blue and a VU meter on the front - the coolest looking piece of musical equipment since the Echoplex. Sound: Deep, round, vintage tone. It has all the tube character of the Boogie and tube SVT but much more definition and actually greater lows. A/B'ed: slightly less mids, but they can be dialed in with the extensive tone controls. One pre-amp tube with a variable selector switch and give you more tube compression and growl if you want it. And lots of power; I've never turned it up halfway, and I play against 2 Marshall/Boogie half stacks and a power drummer. Your control over the sound is essentially a well-placed seven band EQ. Low/Mid/High knobs (50Hz/660Hz/7kHz)
with four range knobs that adjust cut/boost for 180Hz/340Hz/1.2kHz/2.6kHz. The input has a VU meter to show you how hard you're hitting it, but it's padded well (a complaint I had about the Ampegs), so you can hit it hard. Octave switch has a built in Octaver that is clean and can be used modestly to fatten up any bass. What I have a hard time trying to explain is how this thing gets all the warmth of the vintage sound with all the punch
of the modern sound. You just need to hear it for yourself and see if it's "your sound". This is truly a remarkable piece of equipment, the only one that I've been happy with for more than a year. Amps tried against a/b in the store: Ampeg SVT3-Pro, Ampeg SVT4-Pro, SWR SM-900, Eden WT400, Ampeg SVT Classic, Mesa/Boogie 400+, Ampeg SVP with a Crest 900VS power amp. Who is this not for? Maybe slap players, who would want something a little more transparent. People who hate vintage sounds and want an ultra-clean, flat tone. Source: Matt (matt@novia.net), www.bgra.net/reviews/ashdown-abm--1-rvw.html, June 2001
|
|||
|
|
Source: www.basspalace.com, June 2000
|
|||
|
|
|
|||
|
|
AKBM800, 2x400 watts, head, 1998
|
|||
|
|
Wattage: 2x400 RMS/1600 peak Impedance: 4 ohms
Dimensions: 163x610x335 mm/6.4x24x13.2 inches (HWD) Weight: 28 kg/61.6 lbs Source: Ashdown Product Catalog 1998; Gitarre&Bass 4/98, p. 168f; Gitarre&Bass 7/98, p. 134f
|
|||
|
|
Opinion: ...
Source: ..
|
|||
|
|
|
|||
|
|
ABM900, 2x450 watts, head, 2000?
|
|||
|
|
Wattage: 2x450 RMS/2x900 peak Impedance: 4 ohms
Dimensions: ? Weight: ? Source: Ashdown Product Catalog 1998; Musik Produktiv catalog 3/2001
|
|||
|
|
Price: DM 3198 / EUR 1635,11 (new)
Source: Musik Produktiv catalog 3/2001
|
|||
|
|
Opinion: ...
Source: ..
|
|||
|
|
|
|||
|
|

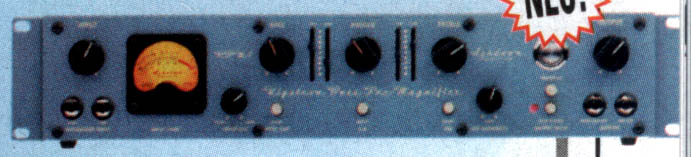

ABM RPM-1, pre amp, rack mount, 2001
|
|||
|
|
Pre Amp: tube (one 12AX7A)/solid-state (called Klystron Bass Pre Magnifier)
Inputs: two, one (high) for passive, one (low, -6dB) for active basses; also stereo line input Controls: input gain, master volume, stereo line input level, output mute EQ: 7-band EQ with on/off switch; preset EQ with on/off switch; sub-octaver pot Effects: one mono in-series send/return Outputs: ? Miscellaneous: sub-octaver and mute output footswitch jacks?; fan-cooled? Dimensions: 19" rack mount, two spaces Weight: 13 lbs Source: Ashdown Product Catalog 1998; Musik Produktiv catalog 3/2001; Steven Brence, www.bgra.net/reviews/ashdown-rpm-1klystro-1-rvw.html, November 2001
|
|||
|
|
Price: [US] $395 (sale) (new)
Source: Steven Brence, www.bgra.net/reviews/ashdown-rpm-1klystro-1-rvw.html, November 2001, bought from Bass Northwest
|
|||
|
|
Opinion: I purchased this preamp to be paired with an Ashdown [APM]1000 stereo power-amp and two Acme Low B2 series II cabs. I play a Steinberger XL2 (all graphite boat-oar shape), a Kubicki Ex-Factor, and an NS Design US5 EUB. I am very impressed with the versatility of this preamp. It can produce from very clean tones to very grindy sounds.
With the vacume tube taken out of the circuit entirely, and the eq shape engaged, it sounds very much like a Trace Elliot amp [...] but with the eq flat and the tube set to about half-way, it has a nice warm sound, even making my graphite steinberger sound more organic. With the tube engaged fully, it sounds much like an overdriven all tube head, making an overdrive pedal redundant for all but the most distorted sound. In all of these settings, the tone remains very punchy and focused on all of my basses. The sub-harmonizer, a relatively subtle octaver, is perhaps the coolest feature, producing a nice sounding and wheel-tracking tone an octave lower. It sounds especially cool on my fretless EUB, but I use it frequently on all of my basses as the music determines. The controls are nicely laid out and easy to use -- it's a simple matter to get a good sound, despite the versatility the tone-shaping controls yield. Many of the features are also footswitch controllable and several have led lights to indicate that they are engaged, making it a very good preamp for live use. The construction is very sturdy and it is really cool looking. The input level is measured by an old-fashioned needle guage that lights up and it has a large metal push-in button on/off switch. All of the knobs and slides are very sturdy and smooth feeling. Additional features: variable crossover with separte 1/4" high and low outputs effects loop active and passive inputs. Complaints: only a mono effect loop no balanced (XLR) outputs only one full-range output relatively uninformative documentation included. To sum up: While this pre-amp has some limitations (listed above), it is a very nice sounding, versatile, well-built, and cool looking pre-amp. I don't like that I have to use a y-cord to interface with a power-amp by the same manufacturer, and can't use the stereo capabilities of the latter fully, or the latter's balanced inputs. On the whole, however, I am very pleased with it. Sound is for me the bottom line, and it sounds very good. If you play a variety of musical styles, from rock to jazz, this pre-amp would be a very good choice. For the price I paid ($395 on sale fromBass Northwest--good guys), I doubt it could be matched, let alone beat. Source: Steven Brence, www.bgra.net/reviews/ashdown-rpm-1klystro-1-rvw.html, November 2001
|
|||
|
|
Source: Musik Produktiv catalog 3/2001
|
|||
|
|
|
|||
|
|
APM600, 2x300 watts, power amp, rack mount, 2001
|
|||
|
|
Power Amp: solid-state
Controls: master volume, output mute? Effects: ? Outputs: line out?; tuner out?; sub out; two speaker outs; symetrical XLR DI out, pre/post EQ switchable? Miscellaneous: sub-octaver and mute output footswitch jacks?; fan-cooled Wattage: 2x300 RMS/2x600 peak Impedance: 4 ohms Dimensions: 19" rack mount, two spaces Weight: ? Source: Ashdown Product Catalog 1998; Musik Produktiv catalog 3/2001
|
|||
|
|
Price: DM 2270 / EUR 1160,63 (new)
Source: Musik Produktiv catalog 3/2001
|
|||
|
|
Opinion: ...
Source: ..
|
|||
|
|
|
|||
|
|

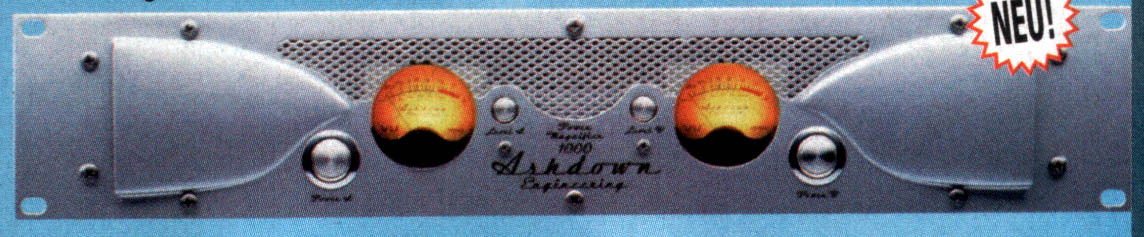

APM1000, 2x500 watts, power amp, rack mount, 2001
|
|||
|
|
Power Amp: solid-state
Inputs: It has one 1/4" input and one balanced (XLR) input for each channel. Controls: master volume, output mute? Effects: ? Outputs: It has one 1/4" and one Speaker output for each channel and one 1/4" bridged output. Miscellaneous: sub-octaver and mute output footswitch jacks?; fan-cooled Wattage: 2x500 RMS/2x1000 peak Impedance: 4 ohms; bridgeable at 800 watts, 8 ohms only Dimensions: 19" rack mount, two spaces, 18" deep Weight: ca. 40 lbs Source: Ashdown Product Catalog 1998; Musik Produktiv catalog 3/2001; Steven Brence, www.bgra.net/reviews/ashdown-abm1000-1-rvw.html, November 2001
|
|||
|
|
Price: DM 2750 / EUR 1406,05 (new)
Source: Musik Produktiv catalog 3/2001
|
|||
|
|
Price: [US] $999 (sale) (new)
Source: Steven Brence, www.bgra.net/reviews/ashdown-abm1000-1-rvw.html, November 2001
|
|||
|
|
Opinion: I purchased the power amp to pair with an Ashdown RPM-1 preamp and two Acme LowB2 series II cabs. I play an '84 Steinberger XL2 (all graphite boat-oar shape), a '93 Kubicki Ex-Factor, and an NS Design US5 EUB. In terms of sound and power, this poweramp is incredible. It drives my acme cabs (notable for being power-hungry) easily. The low tones it produces through them, especially the low-B string on my EUB, are unbelievable, remaining tight and focused, but also warm and huge. The mids and highs are clear and smooth. It has a very quick response and is very quiet, do to having several variable speed fans that are controlled automatically according to the temperature. [...] The poweramp is very cool looking, with a silver face, rounded chrome handles, an old-fashioned needle output guage for each channel and pop-out level controls. The on/off buttons for each channel are large metal buttons, fashioned after a retro car starter button. All in all, it has a sort of retro-avantguard look about it, like equipment in an old sci-fi movie. The build is very sturdy with rack-ears on front and back. It is, however, quite heavy and, although it is only two rack spaces high, it is very deep. To sum up: If you need lots of good clean power, have a strong back and an eye for style, this poweramp would be a great choice. Source: Steven Brence, www.bgra.net/reviews/ashdown-abm1000-1-rvw.html, November 2001
|
|||
|
|
Source: Musik Produktiv catalog 3/2001
|
|||
|
|
|
|||
|
|
MAG200, 200 watts, head, 2001
|
|||
|
|
Wattage: 200 RMS/400 peak? Impedance: 4 ohms?
Dimensions: ? Weight: ? Source: Musik Produktiv catalog 3/2001
|
|||
|
|
Price: DM 1125 / EUR 575,20 (new)
Source: Musik Produktiv catalog 3/2001
|
|||
|
|
Price: £250 [UKP] ([US] $375) (new)
Source: Daniel Frost (danielfrost1976@yahoo.co.uk), www.bgra.net/reviews/ashdown-200wmaghead-1-rvw.html, March 2002
|
|||
|
|
Opinion: Ashdown can do no wrong, this head is a joke for the price, it is mega-loud sounds great and has NO faults.
Source: Daniel Frost (danielfrost1976@yahoo.co.uk), www.bgra.net/reviews/ashdown-200wmaghead-1-rvw.html, March 2002
|
|||
|
|
Source: Musik Produktiv catalog 3/2001
|
|||
|
|
|
|||
|
|

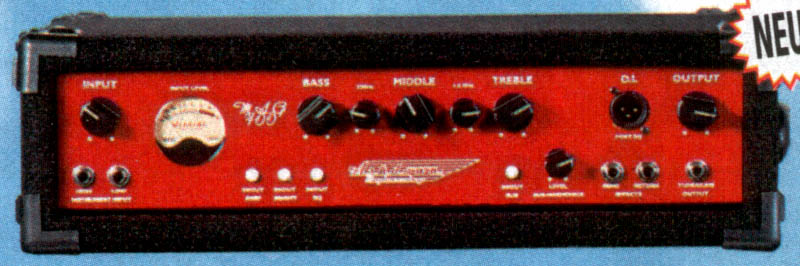

MAG400, 400 watts, head, 2001
|
|||
|
|
Wattage: 400 RMS/800 peak Impedance: 4 ohms?
Dimensions: ? Weight: ca. 30 lbs Source: Musik Produktiv catalog 3/2001; Vinnie Simonette (lsimy@yahoo.com), www.bgra.net/reviews/ashdown-mag-400h-1-rvw.html, June 2001
|
|||
|
|
Price: DM 1650 / EUR 843,63 (new)
Source: Musik Produktiv catalog 3/2001
|
|||
|
|
Price: [US] $675 (new)
Source: Vinnie Simonette (lsimy@yahoo.com), www.bgra.net/reviews/ashdown-mag-400h-1-rvw.html, June 2001, bought at Bass Central
|
|||
|
|
Opinion: [MAG400H] The build quality is exceptional in and out. Good quality jacks, pots and cabinetry throughout. Though it only has a simple 5 band rotary eq, it is VERY effective and can be switched out of the chain if necessary. The input pre is VERY high-headroom/low noise and of course the signature Ashdown backlit VU is a useful and welcome retro feature. In addition to the 5 band eq, there are switches for deep and bright, which are not overpowering yet create above-subtle changes in tone. The sub octave is more of a tone/timbre control than an effect. When used sparingly, it creates a nice extension to the bottom end without creating any mud. Power wise, this amp can dish it out. It's not the loudest head I have owned but definately STRONG. The dual fans help keep it running cool, something all amp manufacturers should realize. [...] This is a very well built amp for the money. Currently I am only powering 2 SWR WM115 cabs but it still cranks. It will really shine with an Ampeg SVT 810 or 610hlf cab! If you cannot afford the ABM series amps, be sure to check out the MAGs! Source: Vinnie Simonette (lsimy@yahoo.com), www.bgra.net/reviews/ashdown-mag-400h-1-rvw.html, June 2001
|
|||
|
|
Source: Musik Produktiv catalog 3/2001
|
|||
|
|
|
|||
|
|
||||
|
|
|
|||
|
|

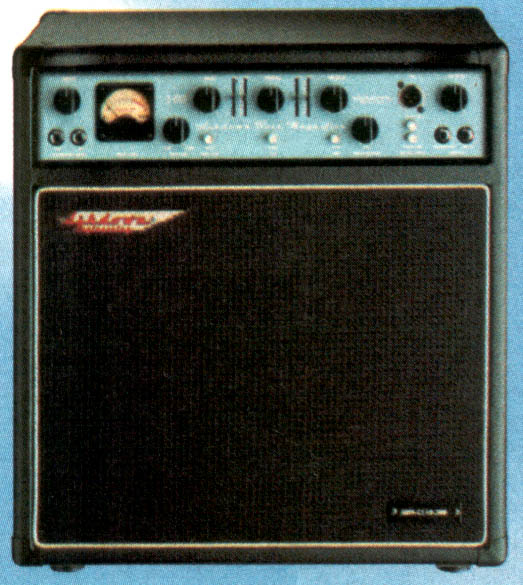

ABM-C110-200, 200 watts, 1x10" combo, 1998
|
|||
|
|
Wattage: 200 RMS/400 peak Impedance: 4 ohms
Speaker: 1x10" driver Dimensions: 600x610x335 mm/23.6x24x13.2 inches (HWD) Weight: 25 kg/55 lbs Source: Ashdown Product Catalog 1998; Gitarre&Bass 4/98, p. 168f; Gitarre&Bass 7/98, p. 134f
|
|||
|
|
Opinion: ...
Source: ..
|
|||
|
|
Source: www.ashdownmusic.co.uk; August 1998
|
|||
|
|
|
|||
|
|
ABM-C110-300, 300 watts, 1x10" combo, 1998?
|
|||
|
|
Wattage: 300 RMS/600 peak Impedance: 4 ohms
Speaker: 1x10" driver Dimensions: ? Weight: ? Source: Ashdown Product Catalog 1998; Musik Produktiv catalog 3/2001
|
|||
|
|
Price: DM 2070 / EUR 1058,37 (new)
Source: Musik Produktiv catalog 3/2001
|
|||
|
|
Opinion: ...
Source: ..
|
|||
|
|
Source: Musik Produktiv catalog 3/2001
|
|||
|
|
|
|||
|
|
ABM-C210-200, 200 watts, 2x10" combo, 1998
|
|||
|
|
Wattage: 200 RMS/400 peak Impedance: 4 ohms
Speakers: 2x10" driver Dimensions: 600x610x335 mm/23.6x24x13.2 inches (HWD) Weight: 35 kg/77 lbs Source: Ashdown Product Catalog 1998; Gitarre&Bass 4/98, p. 168f; Gitarre&Bass 7/98, p. 134f
|
|||
|
|
Opinion: ...
Source: ..
|
|||
|
|
Source: www.ashdownmusic.co.uk; August 1998
|
|||
|
|
|
|||
|
|

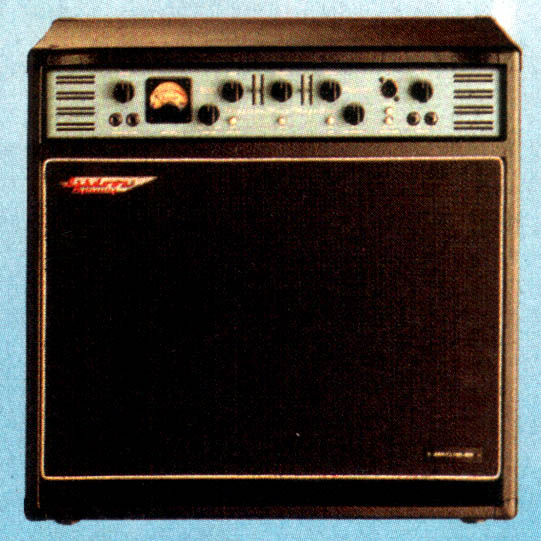

ABM-C210H-300, 300 watts, 2x10" w/ horn combo, 1998?
|
|||
|
|
Wattage: 300 RMS/600 peak Impedance: 4 ohms
Speakers: two 10" Celestion speakers, horn (off/hi/low switchable); one amp has 2 Jensen 'Blueline' 10" drivers, one tweeter Dimensions: 600mm x 609mm x 335mm (HWD?) Weight: ? Source: Ashdown Product Catalog 1998; Musik Produktiv catalog 3/2001; Jon Dickinson (j.dickinson@ksysuk.com), www.bgra.net/reviews/ashdown-engineering-abm210h-300-combo-1-rvw.html, July 2002
|
|||
|
|
Price: DM 2325 / EUR 1188,75 (new)
Source: Musik Produktiv catalog 3/2001
|
|||
|
|
Price: £750 UKP (new)
Source: Jon Dickinson (j.dickinson@ksysuk.com), www.bgra.net/reviews/ashdown-engineering-abm210h-300-combo-1-rvw.html, July 2002
|
|||
|
|
Opinion: Sounds very good, has lots of power, best used with an additional 1x15" or 2x10" cab
Source: Musik Produktiv catalog 2001
|
|||
|
|
Opinion: I've been using a Trace BLX80 for the last two years - bought it cheap when I joined a band after taking a few years out of playing. Great value for money but I wanted something with a lot more power, and above all, great tone. I've played nearly all the usual mid-to-high end bass amplification brands and Ashdown really does the trick. I run the amp with the preshape in, but the EQ and harmonizser out. I mix the clean/grind all the way to grind, i.e. the 12AX7. Unlike other 'hybrid' amps where the valve in the preamp seems to offer only a) impedance matching, and b) comfort to the purchaser, in the Ashdown it's configured so that it gets pushed a bit and really imparts a huge valve warmness to the sound that to my ears doesn't fall far short of an all-valve amp. It's certainly the closest I've ever heard a hybrid amp get in that respect. It *is* loud - I play mainly pub gigs so I enjoy the luxury of plenty of headroom, plus if I need a bigger rig for a gig
here and there then all I need do is sit it on top of a 1x15" cab and I'm made. If I get the need to do some serious rearranging of internal organs, Ashdown also make a 500w powered sub which takes the sub out (<140Hz) - scary. As it is, I play a Stingray 4 and the low end is all there where I need it. The low mids are especially well articulated by the combo. At the first gig I did with it I got tone compliments from quite a few non-musicians, which in my book is praise indeed. [...] If it's in your price range then you owe it to yourself to try one out.
Source: Jon Dickinson (j.dickinson@ksysuk.com), www.bgra.net/reviews/ashdown-engineering-abm210h-300-combo-1-rvw.html, July 2002
|
|||
|
|
Source: Musik Produktiv catalog 2001
|
|||
|
|
|
|||
|
|
ABM-C210H-400, 400 watts, 2x10" w/ horn combo, 1998
|
|||
|
|
Wattage: 400 RMS/800 peak Impedance: 4 ohms
Speakers: two 10" Celestion speakers, horn (off/hi/low switchable) Dimensions: 600x610x335 mm/23.6x24x13.2 inches (HWD) Weight: 38 kg/83.6 lbs Source: Ashdown Product Catalog 1998; Gitarre&Bass 4/98, p. 168f, Gitarre&Bass 7/98, p. 134f
|
|||
|
|
Opinion: A review, see Gitarre&Bass 7/98, p. 134f (in German); Gitarre&Bass on the net: http://www.gitarrebass.de
Source: Gitarre&Bass 7/98
|
|||
|
|
Opinion: A review, see Fachblatt Musiker Magazin 7/98, p. 40f (in German)
Source: Fachblatt Musiker Magazin 7/98
|
|||
|
|
Source: Gitarre&Bass on the net, at www.gitarrebass.de/magazine; August 1998
|
|||
|
|
Source: www.ashdownmusic.co.uk; August 1998
|
|||
|
|
|
|||
|
|
ABM-C210H-500, 500 watts, 2x10" w/ horn combo, 1998?
|
|||
|
|
Wattage: 500 RMS/1000 peak Impedance: 4 ohms
Speakers: two 10" Celestion speakers, horn (off/hi/low switchable) Dimensions: ? Weight: ? Source: Ashdown Product Catalog 1998; Musik Produktiv catalog 3/2001
|
|||
|
|
Price: DM 2650 / EUR 1354,92 (new)
Source: Musik Produktiv catalog 3/2001
|
|||
|
|
Opinion: Sounds very good, has lots of power, best used with an additional 1x15" or 2x10" cab
Source: Musik Produktiv catalog 2001
|
|||
|
|
Source: Musik Produktiv catalog 2001
|
|||
|
|
|
|||
|
|

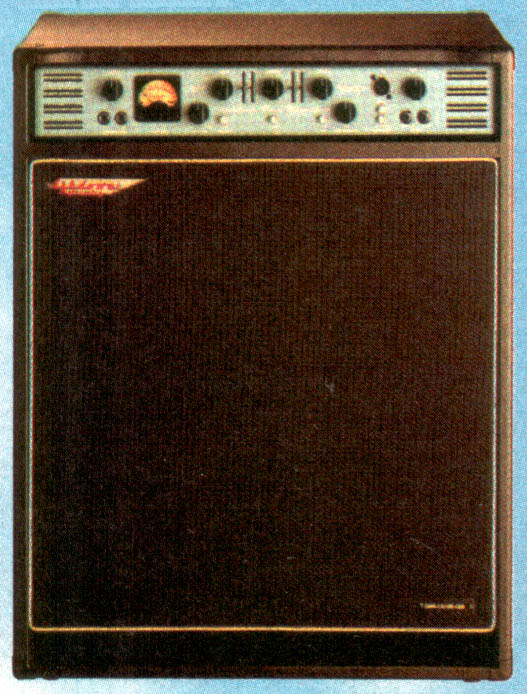

ABM-C410H-400, 400 watts, 4x10" w/ horn combo, 1998
|
|||
|
|
Wattage: 400 RMS/800 peak Impedance: 4 ohms
Speakers: 4x10" driver, horn (off/hi/low switchable) Dimensions: 600x610x335 mm/23.6x24x13.2 inches (HWD) Weight: 46 kg/101.2 lbs Source: Ashdown Product Catalog 1998; Gitarre&Bass 4/98, p. 168f; Gitarre&Bass 7/98, p. 134f
|
|||
|
|
Opinion: ...
Source: ..
|
|||
|
|
Source: www.ashdownmusic.co.uk; August 1998
|
|||
|
|
|
|||
|
|
ABM-C410H-500, 500 watts, 4x10" w/ horn combo, 1998?
|
|||
|
|
Wattage: 500 RMS/1000 peak Impedance: 4 ohms
Speakers: 4x10" driver, horn (off/hi/low switchable) Dimensions: 24x13x28 (HDW) Weight: ? Source: Ashdown Product Catalog 1998; Musik Produktiv catalog 2001; Marc King (marcking@aol.com), www.bgra.net/reviews/ashdown-ambc410h-500-1-rvw.html, July 2002
|
|||
|
|
Price: DM 2995 / EUR 1531,32 (new)
Source: Musik Produktiv catalog 3/2001
|
|||
|
|
Price: [US] $1800 (new)
Source: Marc King (marcking@aol.com), www.bgra.net/reviews/ashdown-ambc410h-500-1-rvw.html, July 2002
|
|||
|
|
Opinion: I have been a Trace [Elliot] user for over 12 years and do Love my AH500 head w/ the GP11 pre-amp. After hauling aroud a 85 pound amp and (2) 1048H(4x10) cabnets I decided to go to a combo. I use a 1992 Alembic Mark King Deluxe bass. I have been in contact with Mark Gooday and decided to give one a try, however they are not that easy to get a hold of in the US. But I did get to try one, and ordered it. I was afraid that it would loose it in a live/loud rock band but it keeped right up there with the old 300 lbs Trace that I hauled for years and didnt even break a sweat. I especially love the sub-harmonizer, it didn't muddy up the sound but it kicks that sub bass w/ just the right touch of finesse that is pleasing to the ear. If you are looking for a great amp to last you 10-15 years [...] and have the cash... you wont be sorry you got an Ashdown. Source: Marc King (marcking@aol.com), www.bgra.net/reviews/ashdown-ambc410h-500-1-rvw.html, July 2002
|
|||
|
|
Source: www.ashdownmusic.co.uk; August 1998
|
|||
|
|
|
|||
|
|
ABM-C115-200, 200 watts, 1x15" combo, 1998
|
|||
|
|
Wattage: 200 RMS/400 peak Impedance: 4 ohms
Speaker: 1x15" driver Dimensions: 600x610x335 mm/23.6x24x13.2 inches (HWD) Weight: 26 kg/57.2 lbs Source: Ashdown Product Catalog 1998; Gitarre&Bass 4/98, p. 168f; Gitarre&Bass 7/98, p. 134f
|
|||
|
|
Opinion: ...
Source: ..
|
|||
|
|
Source: www.ashdownmusic.co.uk; August 1998
|
|||
|
|
|
|||
|
|
ABM-C115-300, 300 watts, 1x15" combo, 1998?
|
|||
|
|
Wattage: 300 RMS/600 peak Impedance: 4 ohms
Speaker: 1x15" driver Dimensions: ? Weight: ? Source: Ashdown Product Catalog 1998; Musik Produktiv catalog 3/2001
|
|||
|
|
Price: DM 2198 / EUR 1123,82 (new)
Source: Musik Produktiv catalog 3/2001
|
|||
|
|
Opinion: ...
Source: ..
|
|||
|
|
|
|||
|
|
ABM-C115-400, 400 watts, 1x15" combo, 1998
|
|||
|
|
Wattage: 400 RMS/800 peak Impedance: 4 ohms
Speaker: 1x15" driver Dimensions: 600x610x335 mm/23.6x24x13.2 inches (HWD) Weight: 28 kg/61.6 lbs Source: Ashdown Product Catalog 1998; Gitarre&Bass 4/98, p. 168f; Gitarre&Bass 7/98, p. 134f
|
|||
|
|
Opinion: ...
Source: ..
|
|||
|
|
Source: www.ashdownmusic.co.uk; August 1998
|
|||
|
|
|
|||
|
|
ABM-C115-500, 500 watts, 1x15" combo, 1998?
|
|||
|
|
Wattage: 500 RMS/1000 peak Impedance: 4 ohms
Speaker: 1x15" driver Dimensions: ? Weight: ? Source: Ashdown Product Catalog 1998; Musik Produktiv catalog 3/2001
|
|||
|
|
Price: DM 2640 / EUR 1349,81 (new)
Source: Musik Produktiv catalog 3/2001
|
|||
|
|
Opinion: ...
Source: ..
|
|||
|
|
|
|||
|
|

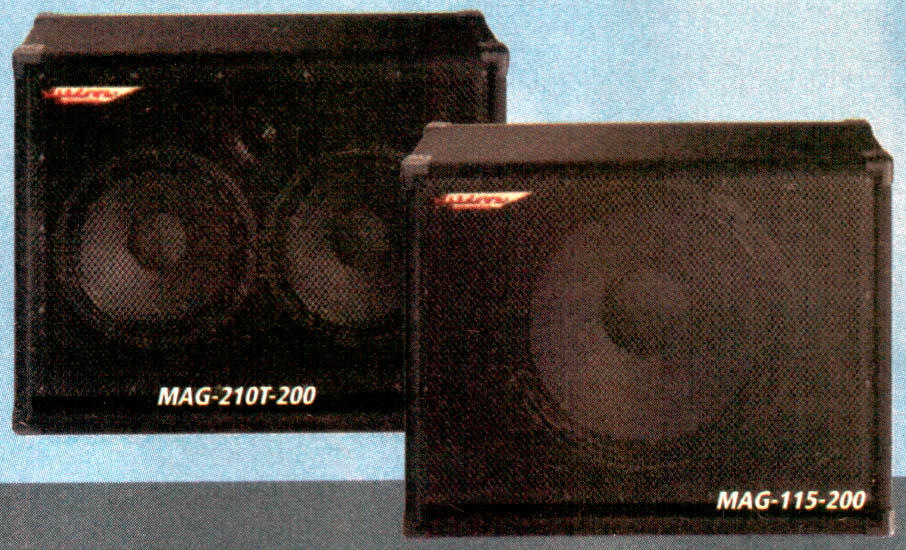

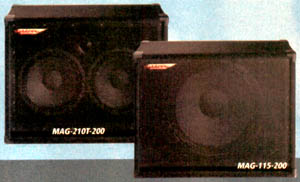

MAG-C210T-200, 200 watts, 2x10" w/ horn combo, 2001
|
|||
|
|
Wattage: 200 RMS/400 peak? Impedance: 4 ohms?
Speaker: 1x15" driver, horn (off/hi/low switchable?) Dimensions: ? Weight: ? Source: Musik Produktiv catalog 3/2001
|
|||
|
|
Price: DM 1729 / EUR 884,02 (new)
Source: Musik Produktiv catalog 3/2001
|
|||
|
|
Opinion: ...
Source: ..
|
|||
|
|
Source: Musik Produktiv catalog 3/2001
|
|||
|
|
|
|||
|
|

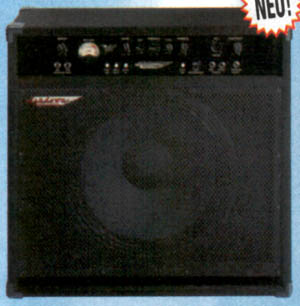

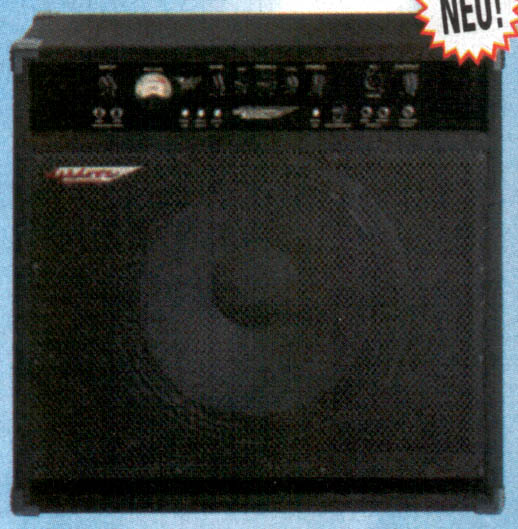

MAG-C115-200, 200 watts, 1x15" combo, 2001
|
|||
|
|
Wattage: 200 RMS/400 peak? Impedance: 4 ohms?
Speaker: 1x15" driver Dimensions: ? Weight: ? Source: Musik Produktiv catalog 3/2001
|
|||
|
|
Price: DM 1625 / EUR 830,85 (new)
Source: Musik Produktiv catalog 3/2001
|
|||
|
|
Opinion: ...
Source: ..
|
|||
|
|
Source: Musik Produktiv catalog 3/2001
|
|||
|
|
|
|||
|
|

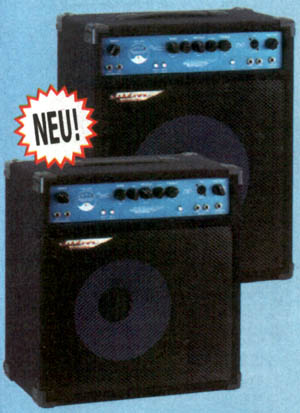

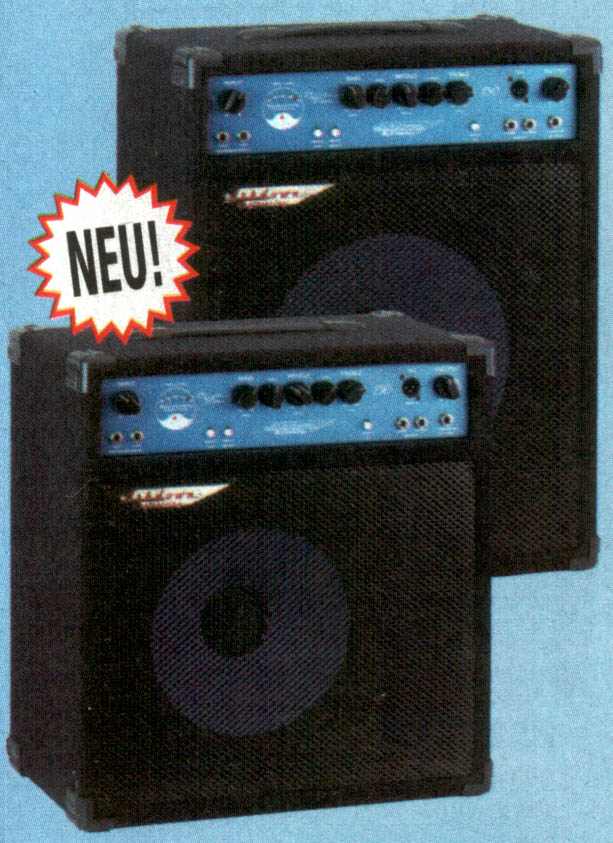

Electric Blue-12, 130 watts, 1x12" combo, 2001
|
|||
|
|
Pre Amp: solid-state
Power Amp: solid-state Inputs: two, one (high) for passive, one (low, -6dB) for active basses; Controls: input gain, master volume EQ: 5-band EQ with on/off switch; preset EQ with on/off switch Effects: one mono in-series send/return Outputs: line/tuner out; two extension speaker outs; symetrical XLR DI out, post EQ Miscellaneous: mute output footswitch jack?; fan-cooled? Wattage: 130 RMS/260 peak? Impedance: 4 ohms? Speaker: 1x12" driver Dimensions: ? Weight: ? Source: Musik Produktiv catalog 3/2001
|
|||
|
|
Price: DM 1050 / 536,86 (new)
Source: Musik Produktiv catalog 3/2001
|
|||
|
|
Source: Musik Produktiv catalog 3/2001
|
|||
|
|
Opinion: ...
Source: ..
|
|||
|
|
|
|||
|
|
Electric Blue-15, 130 watts [150 watts from 4/2003], 1x15" combo, 2001
|
|||
|
|
Pre Amp: solid-state
Power Amp: solid-state Inputs: two, one (high) for passive, one (low, -6dB) for active basses; Controls: input gain, master volume EQ: 5-band EQ with on/off switch; preset EQ with on/off switch; octaver [from 4/2003] Effects: one mono in-series send/return Outputs: line/tuner out; two extension speaker outs [from 4/2003]; symetrical XLR DI out, post EQ Miscellaneous: mute output footswitch jack?; fan-cooled? Wattage: 130 RMS/260 peak? Impedance: 4 ohms? Speaker: 1x15" driver Dimensions: ? Weight: ? Source: Musik Produktiv catalog 3/2001
|
|||
|
|
Price: DM 1185 / 605,88 (new)
Source: Musik Produktiv catalog 3/2001
|
|||
|
|
Source: Musik Produktiv catalog 3/2001
|
|||
|
|
Opinion: Ich spiele einen Electric Blue 130 mit 15"-Speaker und bin mit dem Sound sehr zufrieden. Gekauft habe ich das Teil allerdings eher wegen seines rückenschonenden Gewichts und seiner geringen Größe. Wenn man bei einem Kumpel im Dachgeschoß probt, sind das wichtige Faktoren... Auch die Optik spielte eine Rolle.
[...] Ich hatte noch nie Gelegenheit, die maximale Lautstärke des Gerätes einmal zu testen, aber ich denke, man kann mit dem Kleinen schon gut einen Gig bestreiten, wenn man nicht gerade Nu Metal spielt. In Proben (mit Schlagzeug) mußte ich noch nie weiter als ca. "10 Uhr" aufdrehen, meist genügt auch eine noch gemäßigtere Einstellung. [...] Source: Alexander Zipp (alexanderzipp@aol.com) 4/2003
|
|||
|
|
|
|||
|
|

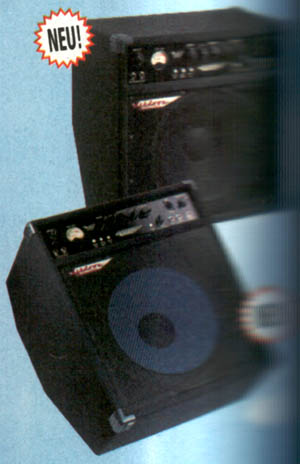

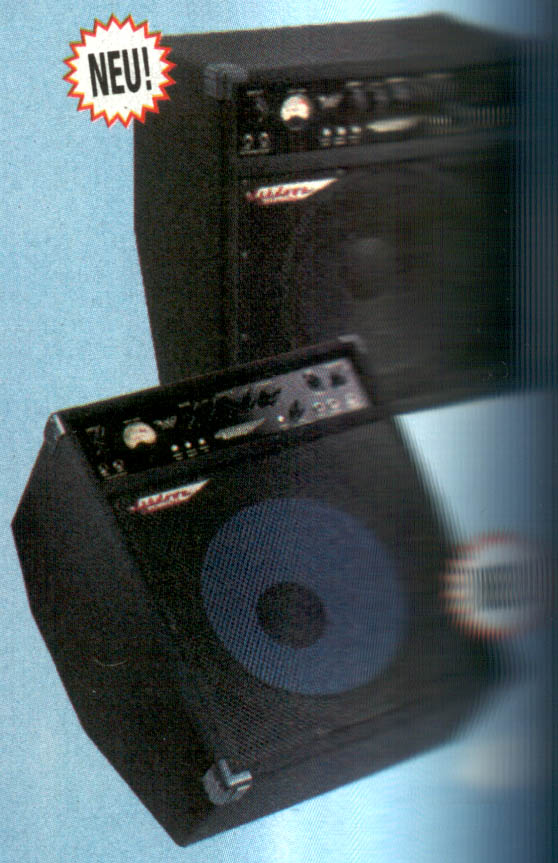

MAG-MN12, 200 watts, 1x12" monitor, 2001
|
|||
|
|
Wattage: 200 RMS/400 peak? Impedance: 4 ohms?
Speaker: 1x12" driver Dimensions: ?, slanted back Weight: ? Source: Musik Produktiv catalog 3/2001
|
|||
|
|
Price: DM 1570 / EUR 802,73 (new)
Source: Musik Produktiv catalog 3/2001
|
|||
|
|
Source: Musik Produktiv catalog 3/2001
|
|||
|
|
Opinion: ...
Source: ..
|
|||
|
|
|
|||
|
|
MAG-MN15, 200 watts, 1x15" monitor, 2001
|
|||
|
|
Wattage: 200 RMS/400 peak? Impedance: 4 ohms?
Speaker: 1x15" driver Dimensions: ?, slanted back Weight: ? Source: Musik Produktiv catalog 3/2001
|
|||
|
|
Price: DM 1695 / EUR 866,64 (new)
Source: Musik Produktiv catalog 3/2001
|
|||
|
|
Source: Musik Produktiv catalog 3/2001
|
|||
|
|
Opinion: ...
Source: ..
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|

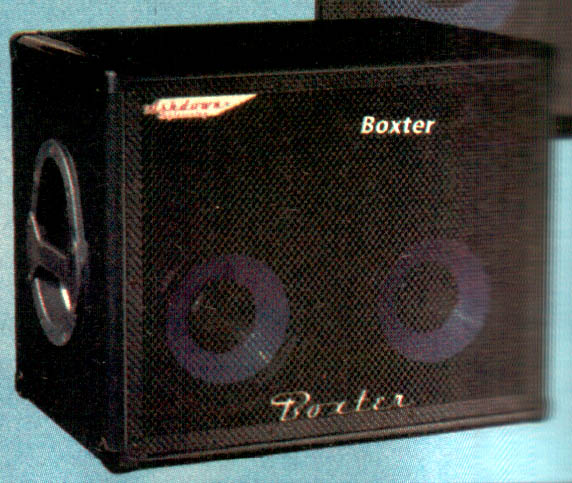

Boxter, 350 watts, 2x8" w/ horn cabinet, 2001?
|
|||
|
|
Inputs: Normal inputs (no XLRs)
Speakers: 2x8", horn (off/hi/low switchable) Wattage: 200 continuous/350 programme? Impedance: 8 ohms Frequencies: ? SPL: ? Dimensions: ? Weight: ? Source: Musik Produktiv catalog 3/2001
|
|||
|
|
Price: DM 1430 / EUR 731,15 (new)
Source: Musik Produktiv catalog 3/2001
|
|||
|
|
Opinion: ...
Source: ..
|
|||
|
|
Source: Musik Produktiv catalog 3/2001
|
|||
|
|
|
|||
|
|

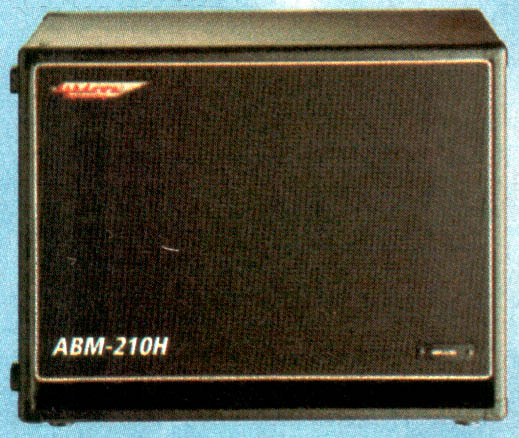

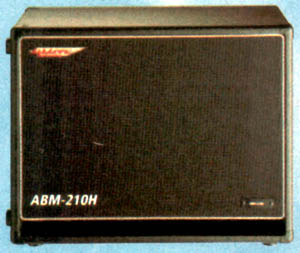

ABM-210H, 300 watts, 2x10" w/ horn cabinet, 1998
|
|||
|
|
Speakers: 2x10", horn (off/hi/low switchable)
Wattage: 300 continuous/450 programme Impedance: 8 ohms Frequencies: 75 Hz - 20 kHz SPL: 102 dB, 1 watt at 1 mtr Dimensions: 487x610x335 mm/19.2x24x13.2 inches (HWD) Weight: 28 kg/61.6 lbs Source: Ashdown Product Catalog 1998; Gitarre&Bass 4/98, p. 168f
|
|||
|
|
Price: DM 1075 / EUR 549,64 (new)
Source: Musik Produktiv catalog 3/2001
|
|||
|
|
Opinion: ...
Source: ..
|
|||
|
|
Source: www.ashdownmusic.co.uk; August 1998
|
|||
|
|
Source: Musik Produktiv catalog 3/2001
|
|||
|
|
|
|||
|
|

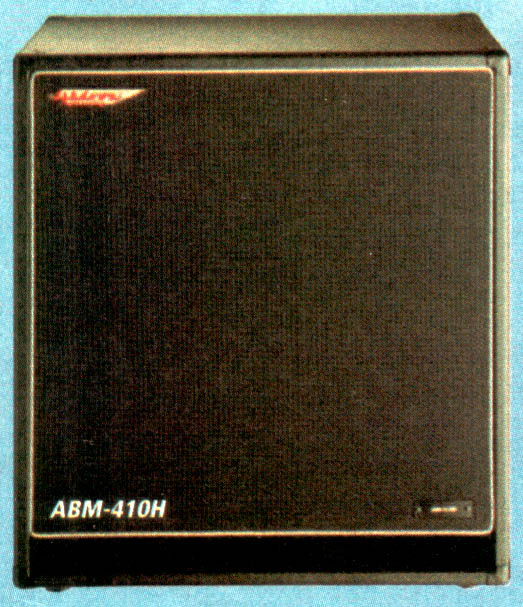

ABM-410H, 600 watts, 4x10" w/ horn cabinet, 1998
|
|||
|
|
Speakers: 4x10", horn (off/hi/low switchable)
Wattage: 600 continuous/900 programme Impedance: 8 ohms Frequencies: 70 Hz - 20 kHz SPL: 103 dB, 1 watt at 1 mtr Dimensions: 660x610x423 mm/26x24x16.6 inches (HWD) Weight: 32 kg/71.1 lbs Source: Ashdown Product Catalog 1998; Gitarre&Bass 4/98, p. 168f
|
|||
|
|
Price: US $999 List ($615 on sale) (new)
Source: Daniel, www-eksl.cs.umass.edu/~schmill/reviews/ashdown-abm410-rvw, June 1999
|
|||
|
|
Price: DM 1490 / EUR 761,82 (new)
Source: Musik Produktiv catalog 3/2001
|
|||
|
|
Opinion: A review, see Gitarre&Bass 4/98, p. 168f (in German); Gitarre&Bass on the net: http://www.gitarrebass.de
Source: Gitarre&Bass 4/98
|
|||
|
|
Opinion: This cabinet is excellent. In a way it reminds be of the warth of a classic Ampeg 8-10 cabinet, except this is only a 4-10. The bottom end is extremely tight as well as the entire spectrum. As far as I can tell there are no troughs in the sound this cabinet produces. If you have never played though an Ashdown cabinet, you should definitly try one.
Source: Daniel, www-eksl.cs.umass.edu/~schmill/reviews/ashdown-abm410-rvw, June 1999
|
|||
|
|
Source: www.ashdownmusic.co.uk; August 1998
|
|||
|
|
Source: Musik Produktiv catalog 3/2001
|
|||
|
|
|
|||
|
|

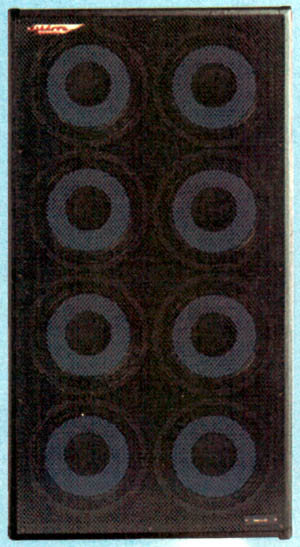

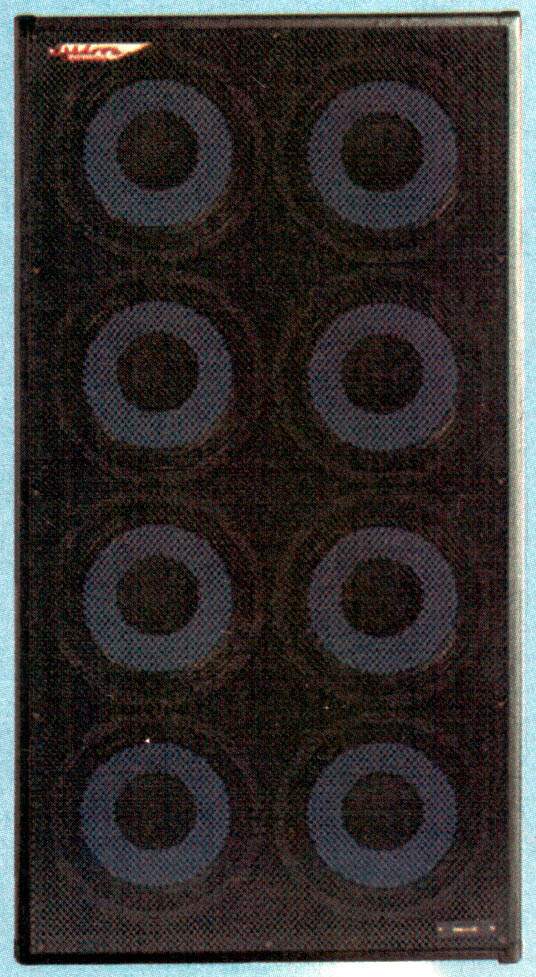

ABM-810, 1200 watts, 8x10" cabinet, 1998
|
|||
|
|
Speakers: 8x10"
Wattage: 1200 continuous/1800 programme Impedance: 4 ohms Frequencies: 70 Hz - 4 kHz SPL: 109 dB, 1 watt at 1 mtr Dimensions: 1125x610x420 mm/44.3x24x16.5 inches (HWD) Weight: 77 kg/169.4 lbs Source: Ashdown Product Catalog 1998; Gitarre&Bass 4/98, p. 168f
|
|||
|
|
Price: DM 2540 / EUR 1298,68 (new)
Source: Musik Produktiv catalog 3/2001
|
|||
|
|
Opinion: ...
Source: ..
|
|||
|
|
Source: www.ashdownmusic.co.uk; August 1998
|
|||
|
|
Source: Musik Produktiv catalog 3/2001
|
|||
|
|
|
|||
|
|
ABM-212, 300 watts, 2x12" cabinet, 1998
|
|||
|
|
Speakers: 2x12"
Wattage: 300 continuous/450 programme Impedance: 8 ohms Frequencies: 60 Hz - 3.5 kHz SPL: 101 dB, 1 watt at 1 mtr Dimensions: 671x610x420 mm/26.4x24x16.5 inches (HWD) Weight: 35 kg/77 lbs Source: Ashdown Product Catalog 1998; Gitarre&Bass 4/98, p. 168f
|
|||
|
|
Opinion: ...
Source: ..
|
|||
|
|
Source: www.ashdownmusic.co.uk; August 1998
|
|||
|
|
|
|||
|
|
ABM-115-200, 100 watts, 1x15" cabinet, 1998
|
|||
|
|
Speaker: 1x15"
Wattage: 100 continuous/200 programme Impedance: 8 ohms Frequencies: 41 Hz - 4 kHz SPL: 94 dB, 1 watt at 1 mtr Dimensions: 487x610x335 mm/19.2x24x13.2 inches (HWD) Weight: 25 kg/55 lbs Source: Ashdown Product Catalog 1998; Gitarre&Bass 4/98, p. 168f
|
|||
|
|
Opinion: ...
Source: ..
|
|||
|
|
Source: www.ashdownmusic.co.uk; August 1998
|
|||
|
|
|
|||
|
|
ABM-115-300, 300 watts, 1x15" cabinet, 1998?
|
|||
|
|
Speaker: 1x15"
Wattage: 150 continuous/300 programme? Impedance: 8 ohms Frequencies: 41 Hz - 4 kHz? SPL: 94 dB, 1 watt at 1 mtr? Dimensions: ? Weight: ? Source: Ashdown Product Catalog 1998; Musik Produktiv catalog 3/2001
|
|||
|
|
Price: DM 889 / EUR 454,54 (new)
Source: Musik Produktiv catalog 3/2001
|
|||
|
|
Opinion: ...
Source: ..
|
|||
|
|
|
|||
|
|
ABM-115-400, 250 watts, 1x15" cabinet, 1998
|
|||
|
|
Speaker: 1x15"
Wattage: 250 continuous/400 programme Impedance: 8 ohms Frequencies: 37 Hz - 2 kHz SPL: 98 dB, 1 watt at 1 mtr Dimensions: 735x610x420 mm/28.9x24x16.5 inches (HWD) Weight: 33 kg/72.6 lbs Source: Ashdown Product Catalog 1998; Gitarre&Bass 4/98, p. 168f
|
|||
|
|
Opinion: A review, see Fachblatt Musiker Magazin 7/98, p. 40f (in German)
Source: Fachblatt Musiker Magazin 7/98
|
|||
|
|
Source: www.ashdownmusic.co.uk; August 1998
|
|||
|
|
|
|||
|
|
ABM-115-400H, 400 watts, 1x15" w/ horn cabinet, 1998?
|
|||
|
|
Speaker: 1x15", horn (off/hi/low switchable?)
Wattage: 250 continuous/400 programme? Impedance: 8 ohms? Frequencies: 37 Hz - 2 kHz? SPL: 98 dB, 1 watt at 1 mtr? Dimensions: 735x610x420 mm/28.9x24x16.5 inches? (HWD) Weight: 33 kg/72.6 lbs? Source: Ashdown Product Catalog 1998; Musik Produktiv catalog 3/2001
|
|||
|
|
Price: DM 999 / EUR 510,78 (new)
Source: Musik Produktiv catalog 3/2001
|
|||
|
|
Opinion: ...
Source: ..
|
|||
|
|
|
|||
|
|
ABM-115-500, 500 watts, 1x15" cabinet, 1998?
|
|||
|
|
Speaker: 1x15"
Wattage: 300 continuous/500 programme? Impedance: 8 ohms Frequencies: 37 Hz - 2 kHz? SPL: 98 dB, 1 watt at 1 mtr? Dimensions: ? Weight: ? Source: Ashdown Product Catalog 1998; Musik Produktiv catalog 3/2001
|
|||
|
|
Price: DM 1045 / EUR 534,30 (new)
Source: Musik Produktiv catalog 3/2001
|
|||
|
|
Opinion: ...
Source: ..
|
|||
|
|
|
|||
|
|
ABM-1510HX, 300 watts, 1x15", 1x10" w/ horn cabinet, 1998
|
|||
|
|
Speakers: 1x15", 1x10", horn (off/hi/low switchable)
Wattage: 300 continuous/450 programme Impedance: 4 ohms Frequencies: 37 Hz - 20 kHz SPL: 101 dB, 1 watt at 1 mtr Dimensions: 735x610x420 mm/28.9x24x16.5 inches (HWD) Weight: 42 kg/92.4 lbs Source: Ashdown Product Catalog 1998; Gitarre&Bass 4/98, p. 168f
|
|||
|
|
Opinion: ...
Source: ..
|
|||
|
|
Source: www.ashdownmusic.co.uk; August 1998
|
|||
|
|
|
|||
|
|
ABM-BP1510, later called ABM-BP1510H, 600 watts, 1x15", 2x10" w/ horn cabinet, 1998
|
|||
|
|
Speakers: 1x15, 2x10", horn (off/hi/low switchable?)
Wattage: 600 continuous/900 programme Impedance: 4 ohms Frequencies: 37 Hz - 20 kHz SPL: 104 dB, 1 watt at 1 mtr Dimensions: 920x610x420 mm/36.2x24x16.5 inches (HWD), slanted front (2001 model) Weight: 46 kg/101.2 lbs Source: Ashdown Product Catalog 1998; Gitarre&Bass 4/98, p. 168f, Musik Produktiv catalog 3/2001
|
|||
|
|
Price: DM 1625 / EUR 830,85 (new)
Source: Musik Produktiv catalog 3/2001
|
|||
|
|
Opinion: ...
Source: ..
|
|||
|
|
Source: www.ashdownmusic.co.uk; August 1998
|
|||
|
|
|
|||
|
|
ABM-SUB, 400 watts, 1x15" active subwoofer cabinet, 1998
|
|||
|
|
Speaker: 1x15" driver
Wattage: 400 RMS/800 peak Impedance: 4 ohms Dimensions: 600x610x420 mm/23.6x24x16.5 inches (HWD) Weight: 36 kg/79.2 lbs Source: Ashdown Product Catalog 1998; Gitarre&Bass 4/98, p. 168f
|
|||
|
|
Opinion: A review, see Gitarre&Bass 7/98, p. 134f (in German); Gitarre&Bass on the net: http://www.gitarrebass.de
Source: Gitarre&Bass 7/98
|
|||
|
|
Source: Gitarre&Bass on the net, at www.gitarrebass.de/magazine; August 1998
|
|||
|
|
Source: www.ashdownmusic.co.uk; August 1998
|
|||
|
|
|
|||
|
|
MAG-210T, 200 watts, 2x10" w/ horn cabinet, 2001?
|
|||
|
|
Inputs: Normal inputs (no XLRs)
Speakers: 2x10", horn (off/hi/low switchable?) Wattage: 100 continuous/200 programme? Impedance: 8 ohms Frequencies: ? SPL: ? Dimensions: ? Weight: ? Source: Musik Produktiv catalog 3/2001
|
|||
|
|
Price: DM 798 / EUR 408,01 (new)
Source: Musik Produktiv catalog 3/2001
|
|||
|
|
Opinion: ...
Source: ..
|
|||
|
|
Source: Musik Produktiv catalog 3/2001
|
|||
|
|
|
|||
|
|
MAG-410T, 350 watts, 4x10" w/ horn cabinet, 2001?
|
|||
|
|
Inputs: Normal inputs (no XLRs)
Speakers: 4x10", horn (off/hi/low switchable?) Wattage: 200 continuous/350 programme? Impedance: 8 ohms Frequencies: ? SPL: ? Dimensions: ? Weight: ? Source: Musik Produktiv catalog 3/2001
|
|||
|
|
Price: DM 1140 / EUR 582,87 (new)
Source: Musik Produktiv catalog 3/2001
|
|||
|
|
Opinion: ...
Source: ..
|
|||
|
|
|
|||
|
|
MAG-115, 150 watts, 1x15" cabinet, 2001?
|
|||
|
|
Inputs: Normal inputs (no XLRs)
Speakers: 1x15" Wattage: 100 continuous/150 programme? Impedance: 8 ohms Frequencies: ? SPL: ? Dimensions: ? Weight: ? Source: Musik Produktiv catalog 3/2001
|
|||
|
|
Price: DM 699 / EUR 357,39 (new)
Source: Musik Produktiv catalog 3/2001
|
|||
|
|
Opinion: ...
Source: ..
|
|||
|
|
Source: Musik Produktiv catalog 3/2001
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|

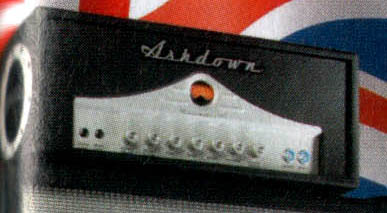

Peacemaker 50, 50 watts, head, 2002
|
|||
|
|
Pre Amp: tube (two 12AX7As?)
Power Amp: tube (two EL34s?) Inputs: two Controls: input gain, master volume EQ: ? Effects: ? Outputs: ? Miscellaneous: two channels; class-a; hand-built, point-to-point wired; auto-bias Wattage: 50 RMS/100 peak? Impedance: 8 ohms? Dimensions: ? Source: Ad in Gitarre&Bass 6/2002, p. 57
|
|||
|
|
Source: www.ashdownmusic.co.uk; July 1998
|
|||
|
|
|
|||
|
|

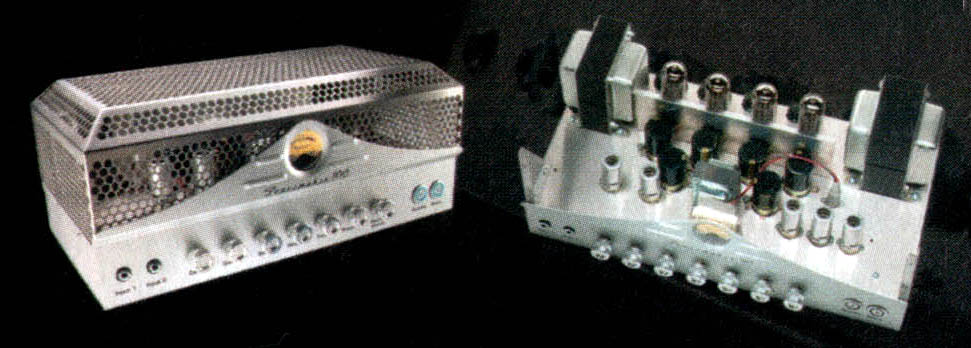

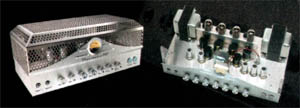

Peacemaker 100, 100 watts, head, 2002
|
|||
|
|
Pre Amp: tube (two 12AX7As?)
Power Amp: tube (four EL34s?) Inputs: two Controls: input gain, master volume EQ: ? Effects: ? Outputs: ? Miscellaneous: two channels; class-a; hand-built, point-to-point wired; auto-bias Wattage: 100 RMS/200 peak? Impedance: 8 ohms? Dimensions: ? Source: Ad in Gitarre&Bass 6/2002, p. 57
|
|||
|
|
Source: Ad in Gitarre&Bass 6/2002, p. 57
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|

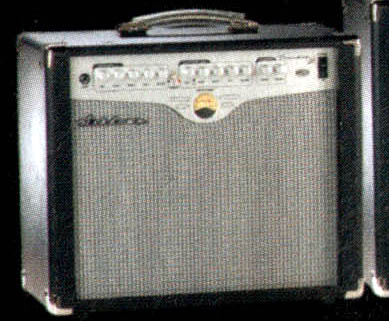

Peacemaker 20, 20 watts, 1x12"? combo, 2002
|
|||
|
|
Pre Amp: tube (two 12AX7As?)
Power Amp: tube (two EL34s?) Inputs: two Controls: input gain, master volume EQ: ? Effects: ? Outputs: ? Miscellaneous: two channels; class-a; hand-built, point-to-point wired; auto-bias Wattage: 20 RMS/40 peak? Impedance: 8 ohms? Speakers: 1x12"? Celestion Dimensions: ? Source: Ad in Gitarre&Bass 6/2002, p. 57
|
|||
|
|
Source: Ad in Gitarre&Bass 6/2002, p. 57
|
|||
|
|
|
|||
|
|

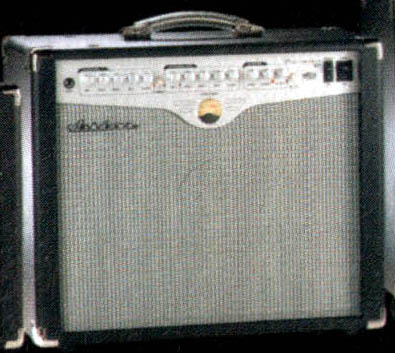

Peacemaker 40, 40 watts, 1x12"? combo, 2002
|
|||
|
|
Pre Amp: tube (two 12AX7As?)
Power Amp: tube (two EL34s?) Inputs: two Controls: input gain, master volume EQ: ? Effects: ? Outputs: ? Miscellaneous: two channels; class-a; hand-built, point-to-point wired; auto-bias Wattage: 40 RMS/80 peak? Impedance: 8 ohms? Speakers: 1x12"? Celestion Dimensions: ? Source: Ad in Gitarre&Bass 6/2002, p. 57
|
|||
|
|
Source: Ad in Gitarre&Bass 6/2002, p. 57
|
|||
|
|
|
|||
|
|

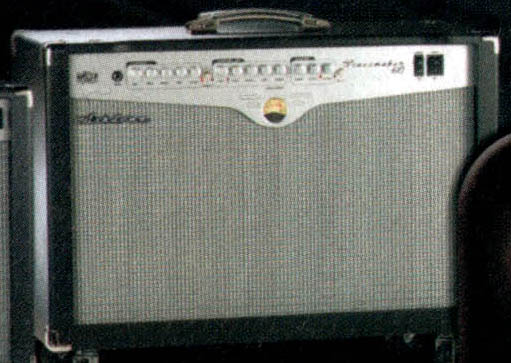

Peacemaker 60, 60 watts, 2x12"? combo, 2002
|
|||
|
|
Pre Amp: tube (two 12AX7As?)
Power Amp: tube (four EL34s?) Inputs: two Controls: input gain, master volume EQ: ? Effects: ? Outputs: ? Miscellaneous: two channels; class-a; hand-built, point-to-point wired; auto-bias Wattage: 60 RMS/120 peak? Impedance: 8 ohms? Speakers: 2x12"? Celestion Dimensions: ? Source: Ad in Gitarre&Bass 6/2002, p. 57
|
|||
|
|
Source: Ad in Gitarre&Bass 6/2002, p. 57
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|

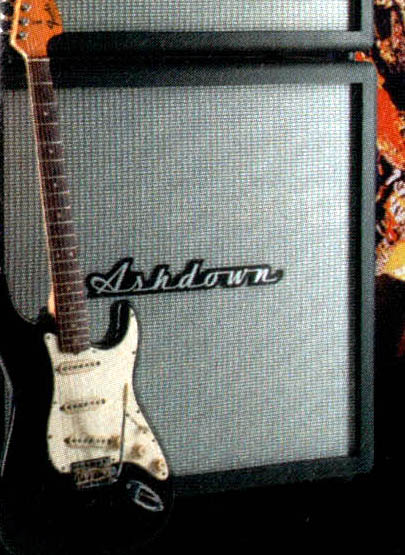

4x12 Cabinet, 300 watts?, 4x12 cabinet, 2002
|
|||
|
|
Speakers: 4x12"
Wattage: 300 continuous?/600 programme? Impedance: 8 ohms? Frequencies: ? SPL: ? Dimensions: ? Weight: ? Source: Ad in Gitarre&Bass 6/2002, p. 57
|
|||
|
|
Source: Ad in Gitarre&Bass 6/2002, p. 57
|
|||
|
|
|
|||
|
|
|
|||
|
|
|
|||
|
|
Source: Ad in Musik Produktiv catalog 3/2001, p. 675
|
|||
|
|
|
|||
|
|
Source: Ad in Gitarre&Bass 6/2002, p. 57
|
|
|
to the top |
The Guitar Room |
Email
|
|
|
|
|
|
Copyright © 1998-2010 by Daniel Cermak-Sassenrath. This is no official Ashdown Engineering homepage, and I am not affiliated with the company in any way. |
